Fully domestic design with a modular structure, supporting AD, DA, serial/CAN, PWM, DIO, resistance and 1553B modules working together, with a 1394 bus built into the zero slot.

Series overview

The GUXI Series comprises fully domestic multi-function modular measurement and control instruments, supporting AD, DA, serial/CAN, PWM, DIO, resistance and 1553B modules working together, with a 1394 bus built into the zero-slot control module — for bus testing and integrated multi-signal measurement.

Devices in this series

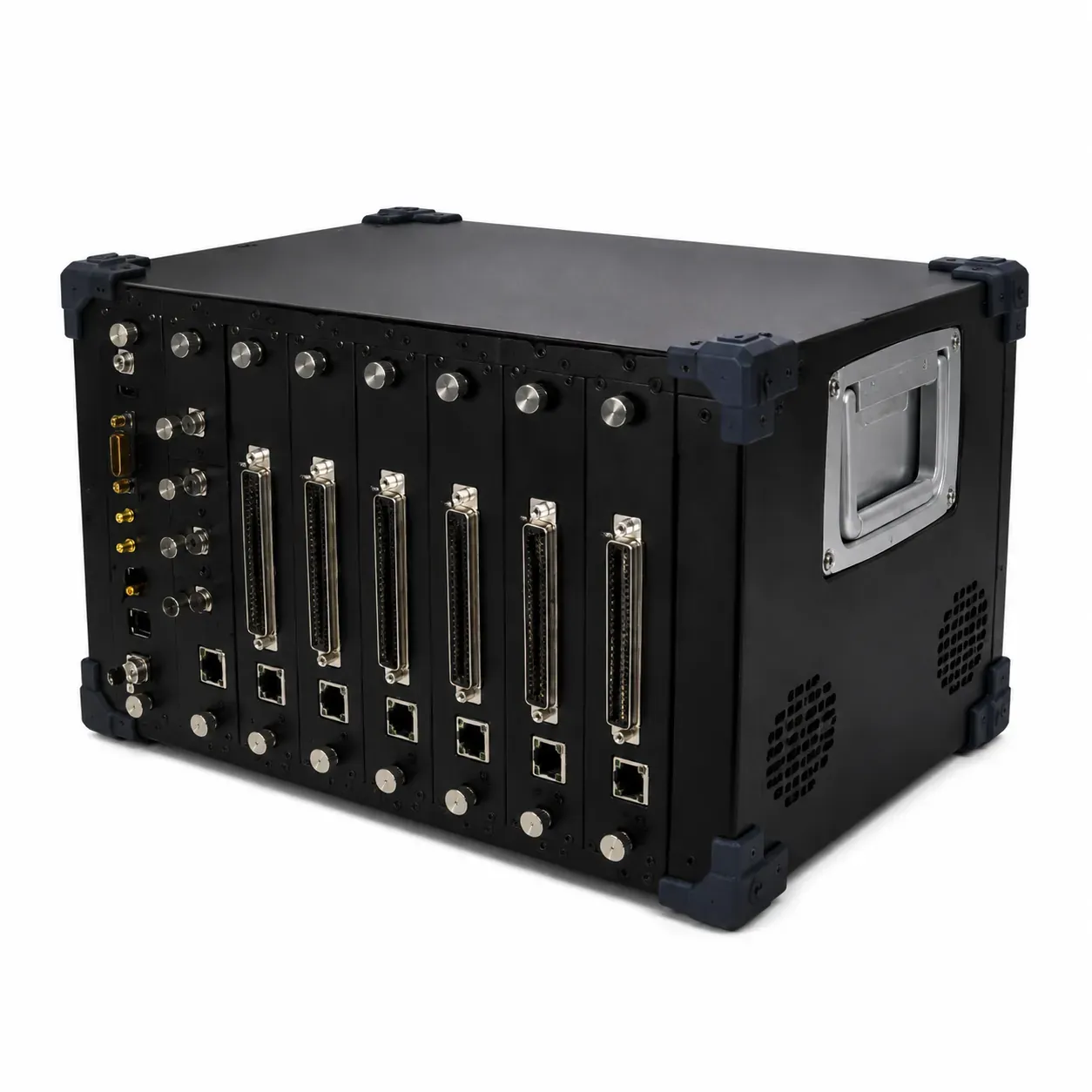

GUXI domestic-chip portable modular test & measurement platform chassis

GUXI-1007

A fully domestic-chip portable modular test & measurement platform integrating bus, analog, digital and pulse multi-signal testing

View detail

Bus & Communication Modules

1553B, 1394, serial and CAN communication modules — chosen to match the bus types of the unit under test, working alongside the other modules once installed in the chassis.

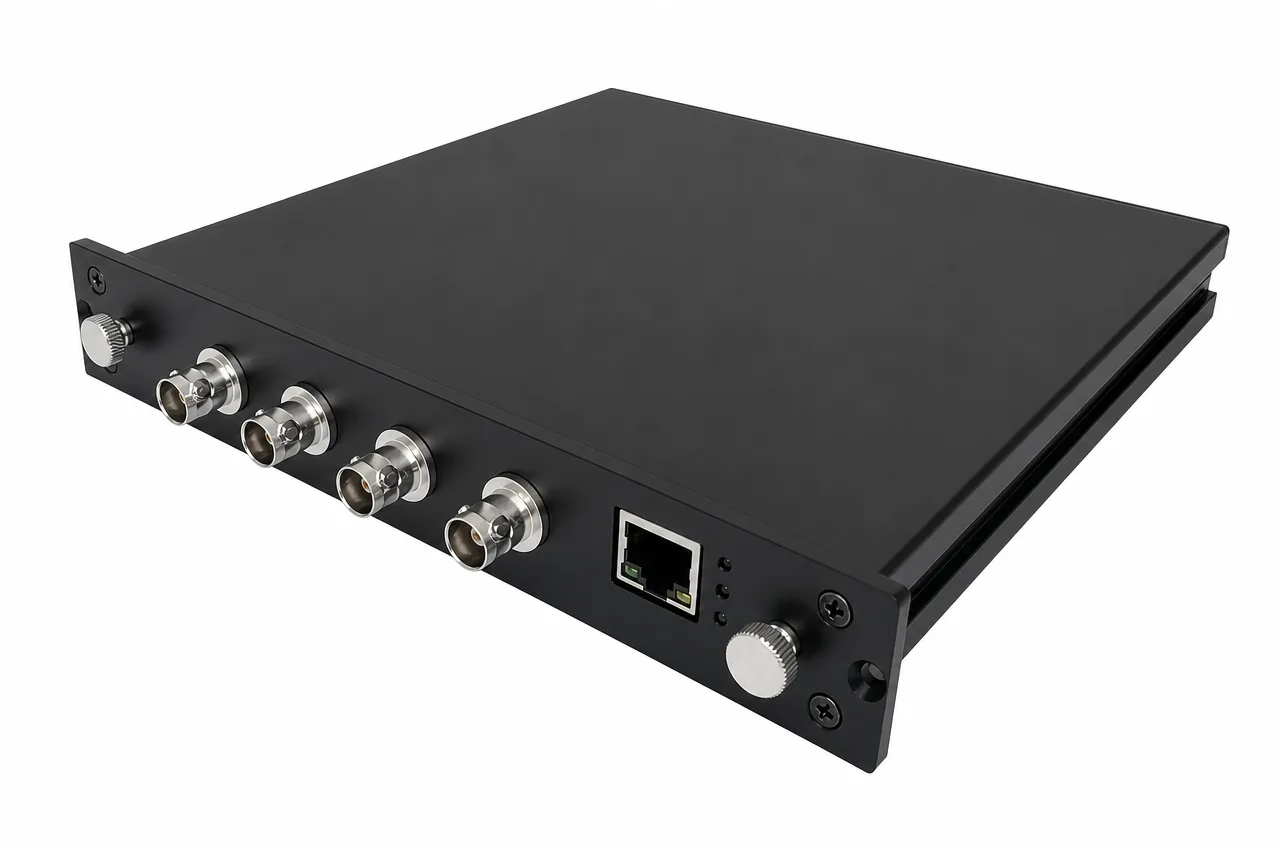

GJB289A (1553B) bus module card with four front BNC connectors and a gigabit-Ethernet port

GJB289A (1553B) Bus Module

2 channels × 4 with dual-redundant transceivers, full BC/RT/BM, multi-cycle scheduling for RTs on differing periods

View detail
GUXI serial / CAN communication module card with a front high-density multi-pin signal connector and a gigabit-Ethernet port

Serial / CAN Communication Module

16 serial ports switchable between 422/485/232 plus 4 CAN channels, with programmable serial↔CAN auto-forwarding and date-based on-board storage

View detail

Analog Modules

Analog I/O and resistance acquisition & simulation modules covering measurement and stimulus of voltage-type signals, closing the loop between the two on one card.

GUXI AD analog acquisition module card with a front high-density multi-pin signal connector and a gigabit-Ethernet port

AD Analog Acquisition Module

32 single-ended / 16 differential, switchable — 250 kS/s, 16-bit, ±10V, better than ±0.5%FS

View detail
GUXI DA analog output module card with a front high-density multi-pin signal connector and a gigabit-Ethernet port

DA Analog Output Module

16 single-ended / 8 differential, switchable — 100 kS/s/ch synchronous, 16-bit, ±10V, fixed and arbitrary waveforms

View detail
GUXI resistance acquisition & simulation module card with a front high-density multi-pin signal connector and a gigabit-Ethernet port

Resistance Acquisition & Simulation Module

12 three-wire PT1000 static-acquisition channels (800Ω~1600Ω, ±1%FS) plus 12 fixed 1KΩ simulation channels, with on-board storage and calibration

View detail

Digital & Pulse Modules

Digital I/O and PWM / pulse modules for acquiring, driving and simulating discrete and pulse signals.

GUXI digital I/O (DI / DO) module card with a front high-density multi-pin signal connector and a gigabit-Ethernet port

Digital I/O Module (DI / DO)

20 single-ended DI and 28 isolated DO channels, parameterized per 4-channel group, with programmable DIO auto-forwarding and two-bit IO status read-back

View detail
GUXI PWM / pulse module card with a front high-density multi-pin signal connector and a gigabit-Ethernet port

PWM / Pulse Module

4 simulation-output and 4 acquisition channels — 1V~28V amplitude, 1Hz~50KHz, 0~100% duty cycle at 0.1% resolution
